Description
Faucet Specifications

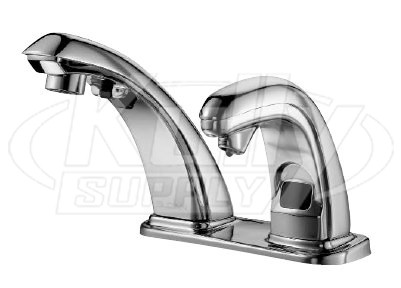

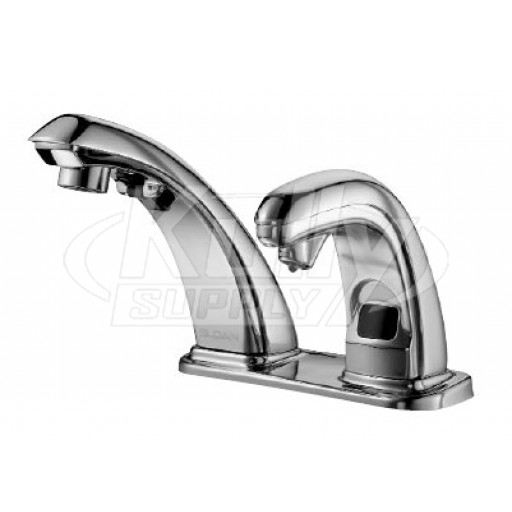

ADA Compliant, Sensor Activated, 24 VAC, Chrome Plated Cast Brass Hand Washing Faucet with the following features:
- Splash-proof Circuit Control Module
- Bak-Chek Tee for Hot/Cold Supply
- Vandal Resistant Spray Head with Pressure Compensating Flow Control
- Sensor Range Adjustment Screw
- Troubleshooting LED Indicator Lights
- User Friendly Variable Time Out Settings
- Serviceable Filtered Solenoid Valve
- Chrome Plated Metal Throat Plate
- 120 VAC/24 VAC Plug-in Transformer (P Type ETF-233 – Standard) (Not included in LT Models)
- Metal Jacketed Wire Protection for Sensor/Solenoid Leads
- Modular Quick-Release Sensor and Solenoid Connections
- Trim Plate with Anti-rotation Pin (4” Trim Plate – Standard)
Soap Dispenser Specifications
ADA Compliant, Sensor Activated, Electronic, Chrome Plated Cast Brass Spout, Soap Dispenser with the following features:
- Modular One-piece Construction
- Active Infrared Sensor
- Chrome Plated Metal Throat Plate
- 120 VAC/6 VDC Plug-in Transformer (P Type ESD-227 – Standard)
- Mounting Hardware included
- Low Soap Level Indicator
- Easy Loading Disposable Soap Refills
- New Pump and Delivery Tube with each Refill
