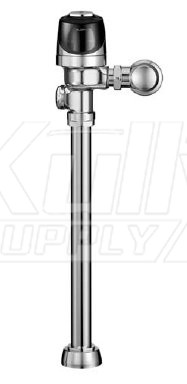

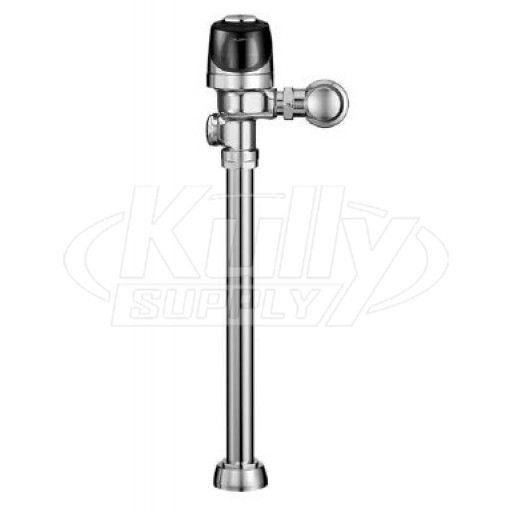

Sloan G2 8116 Sensor Flushometer

Description

Quiet, Exposed, Diaphragm Type, Chrome Plated Closet Flushometer with the following features:

• PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Flex Tube Diaphragm designed for improved life and reduced maintenance
• ADA Compliant OPTIMA Plus Battery Powered Infrared Sensor for automatic “No Hands” operation
• Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
• Latching Solenoid Operator
• Engineered Metal Cover with replaceable Lens Window
• User friendly three (3) second Flush Delay
• Courtesy Flush Override Button
• Four (4) Size AA Batteries factory installed
• “Low Battery” Flashing LED
• Infrared Sensor Range Adjustment Screw
• Initial Set-up Range Indicator Light (first 10 minutes)
• Chrome Plated Metal Handle Cap
• 1” I.P.S. Screwdriver Bak-Chek Angle Stop
• Free Spinning, Vandal Resistant Stop Cap
• Adjustable Tailpiece
• High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
• Spud Coupling and Flange for 1 1/2” Top Spud
• Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
• High Copper, Low Zinc Brass Castings for Dezincification Resistance
• Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Flush Accuracy Controlled by CID Technology
• Diaphragm, Stop Seat and Vacuum Breaker to be molded from PERMEX Rubber Compound for Chloramine resistance
