Description
NOTE: Includes Body Only. For pushbutton options, please add an option from the list on the right.
Pushbutton Options:
- FW Fixture Wall Actuator (HY-33-A)
- MP Metal Partition Actuator (HY-49-A)
- SW Side Wall Mounted Actuator (HY-72-A)
- MBFW Metal Button Fixture Wall Actuator (HY-100-A)
- MBPM Metal Button Panel Mount (HY-108-A)

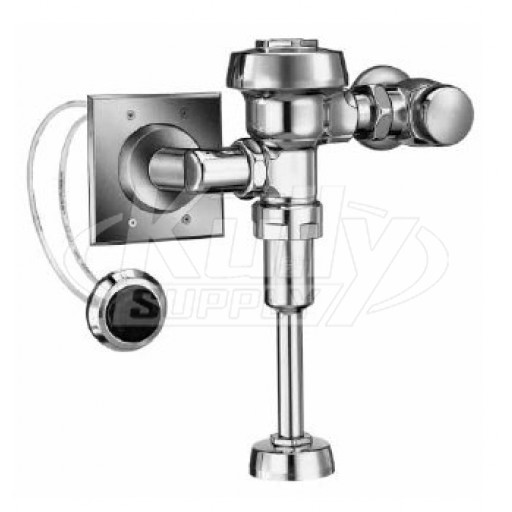

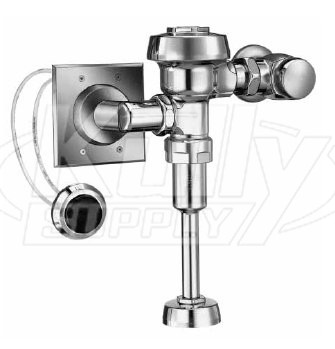

Exposed Hydraulically Operated Urinal Flushometer, for 3/4” top spud urinals.
- Dual Filtered By-pass
- ADA Compliant Non-Hold-Open feature type Actuator (specify Actuator type listed below)
- 3/4” I.P.S. Screwdriver Bak-Chek Angle Stop
- Free Spinning Vandal Resistant Stop Cap
- Adjustable Tailpiece
- High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
- Spud Coupling and Flange for 3/4” Top Spud
- Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
- Diaphragm, Stop Seat and Vacuum Breaker to be molded from PERMEX rubber compound for Chloramine resistance
